vxe-table数据分组的三种展示方式详解

热心网友时间：2026-06-14

转载

处理表格里的分组数据时，不同场景对层级呈现的要求完全不一样。vxe-table 提供了三种灵活的分组展示模式，通过 aggregateConfig mode 参数就能轻松切换，今天我们逐个来聊聊它们各自的特点和适用场景。指定列按层级展示这是一种“传统”的分组模式。聚合配置的 mode 参数默认就

处理表格里的分组数据时，不同场景对层级呈现的要求完全不一样。vxe-table 提供了三种灵活的分组展示模式，通过 aggregateConfig.mode 参数就能轻松切换，今天我们逐个来聊聊它们各自的特点和适用场景。

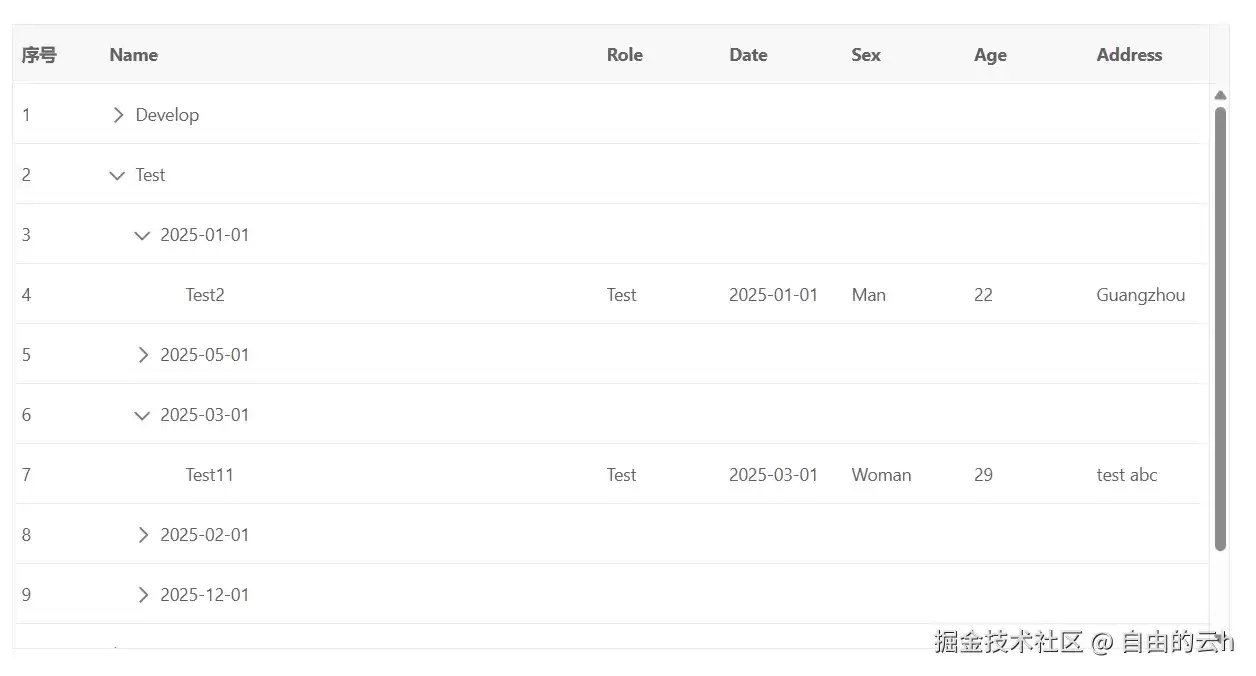

指定列按层级展示

这是一种“传统”的分组模式。聚合配置的 mode 参数默认就是 default，也就是说，如果不额外指定，就是这个模式。

它的工作原理很简单：分组层级会集中在你指定的某一列上展示，这一列需要设置 rowGroupNode: true。其他分组字段则作为普通数据列平铺显示。缩进的视觉效果和树形结构一模一样，非常有层次感。

适用场景：希望分组标识固定在某个特定列（比如名称列），其他分组字段作为普通列展示，保持表格的整洁性和可读性。

<template>
  <div>
    <vxe-grid v-bind="gridOptions">vxe-grid>
  div>
template><script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  showOverflow: true,
  aggregateConfig: {
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
    { field: 'role', title: 'Role' },
    { field: 'date', title: 'Date' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
script>

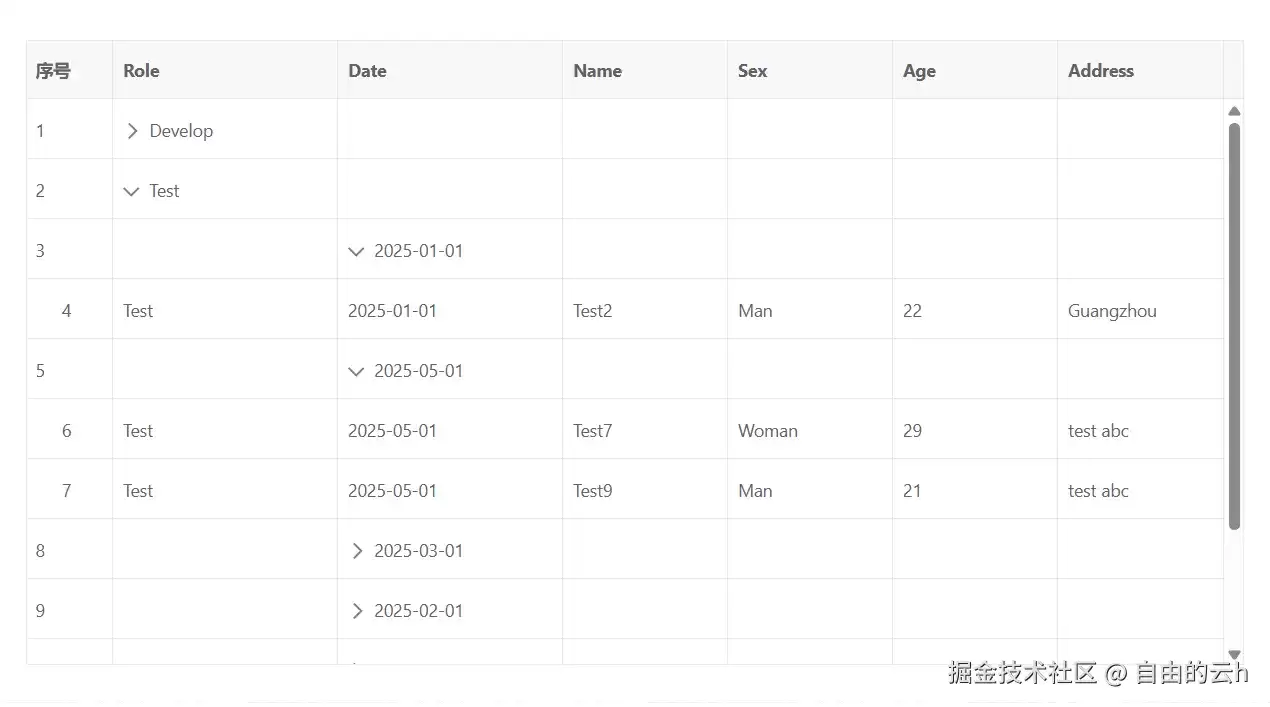

自动按列位置来展示层级

这种方式更“直观”，它通过设置 aggregate-config.mode='column' 来实现。分组层级不再固定于某一列，而是自动与 groupFields 中字段的列位置对齐。

每个分组字段各自独立占一列，并在该列内部展示对应的分组缩进。比如“角色”列展示角色层级，“日期”列展示日期层级，一一对应。需要注意的是，这种模式下不需要设置 rowGroupNode。

适用场景：希望分组字段本身所在的列就能体现层级关系，让用户直观地看到像“角色 → 日期”这样的树形结构。

<template>
  <div>
    <vxe-grid v-bind="gridOptions">vxe-grid>
  div>
template><script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  border: true,
  showOverflow: true,
  aggregateConfig: {
    mode: 'column',
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'role', title: 'Role', width: 180 },
    { field: 'date', title: 'Date', width: 180 },
    { field: 'name', title: 'Name' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
script>

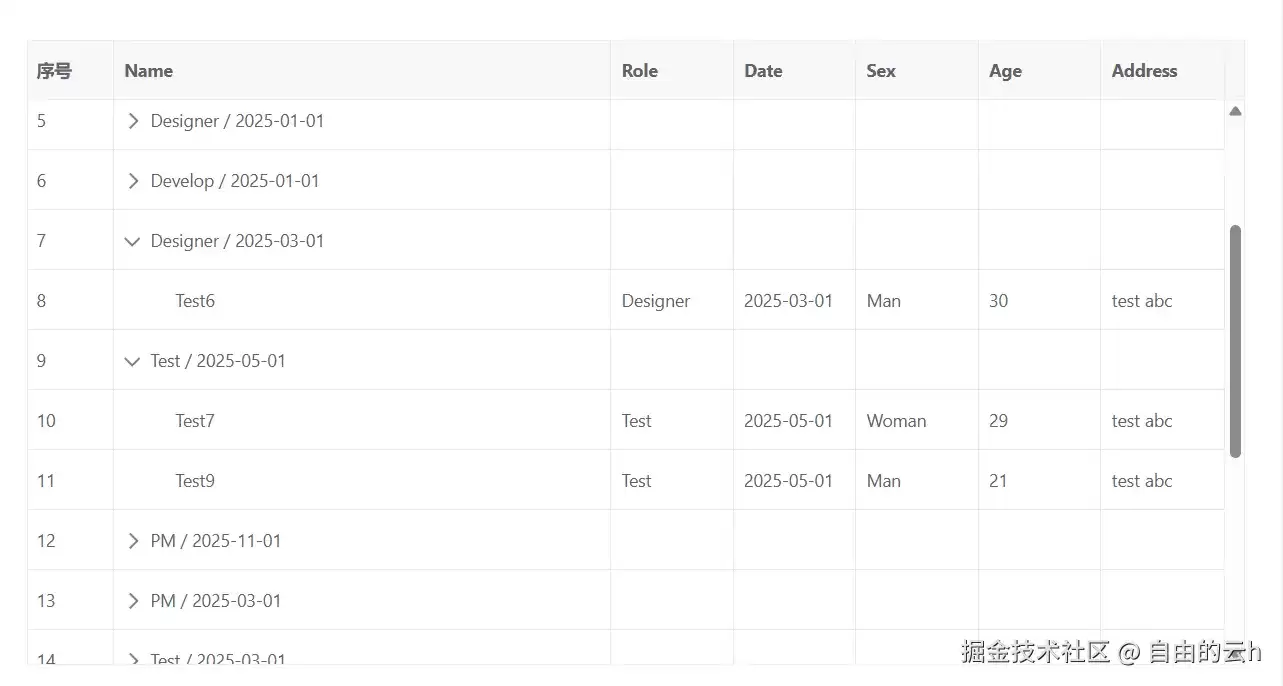

合并为一组进行展示

最后这个模式有点“偷懒”的意味。通过 aggregate-config.mode='combined' 设置后，所有分组字段会被合并成一个“分组节点”来展示。换句话说，多个层级被压缩成一个扁平节点，不再拆分嵌套关系。

这个节点的标题由所有分组字段的值拼接而成，比如“Develop - 2025-02-01”。

适用场景：不关心多层次内部结构，只需要把符合某组字段值组合的数据归为一个组。简单、直接、不啰嗦。

<template>
  <div>
    <vxe-grid v-bind="gridOptions">vxe-grid>
  div>
template><script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  border: true,
  showOverflow: true,
  aggregateConfig: {
    mode: 'combined',
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
    { field: 'role', title: 'Role' },
    { field: 'date', title: 'Date' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
script>

模式对比一览

最后，用一张表格把三种模式的核心差异总结清楚，方便快速选型：

模式	mode 值	层级展示位置	是否需要 rowGroupNode	典型效果
指定列层级	'default'	固定在某列（如 name 列）	是	分组缩进集中在单一列，其他分组字段平铺
按列位置层级	'column'	分别在各个分组字段列	否	每个分组字段列独立展示自己的层级
合并展示	'combined'	固定在某列，但分组节点合并	是	所有分组字段值拼接成一个节点，无嵌套
